HD200 Bailey Bridge
BAILEY
we can also help you to sove any subsequent bailey bridge component maintenance.

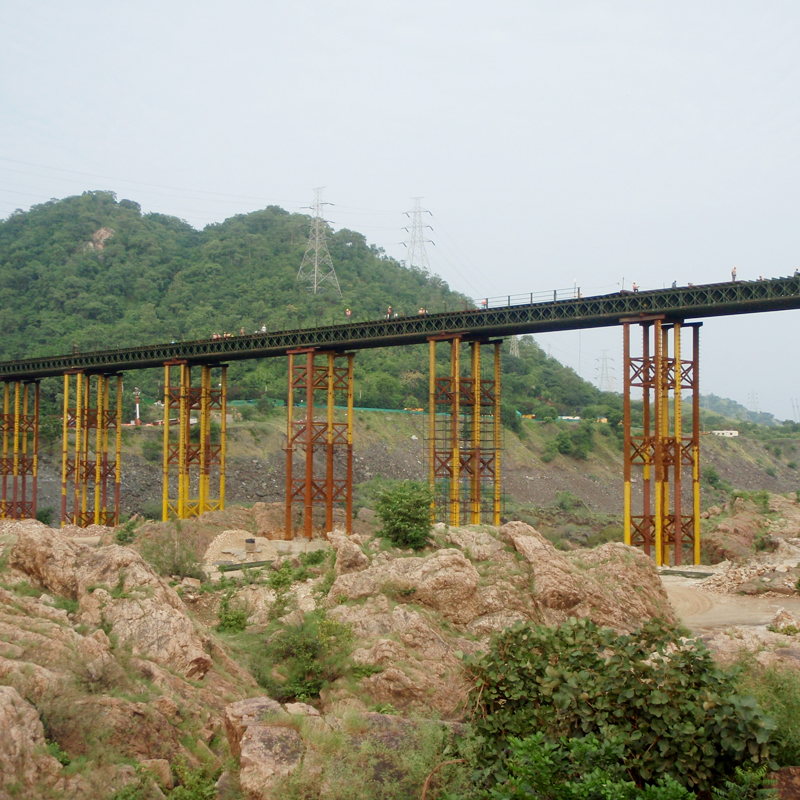

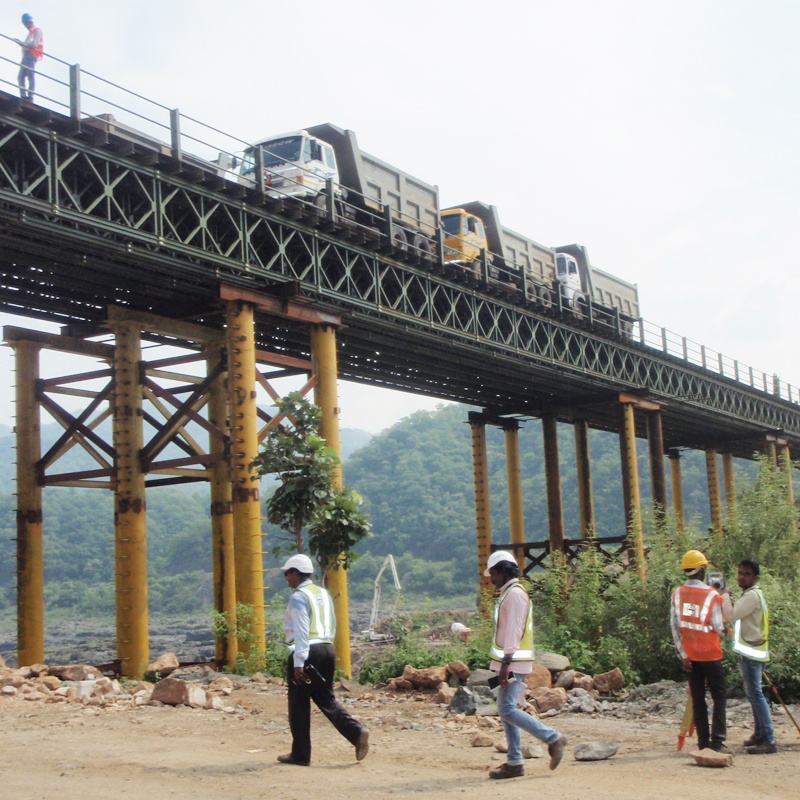

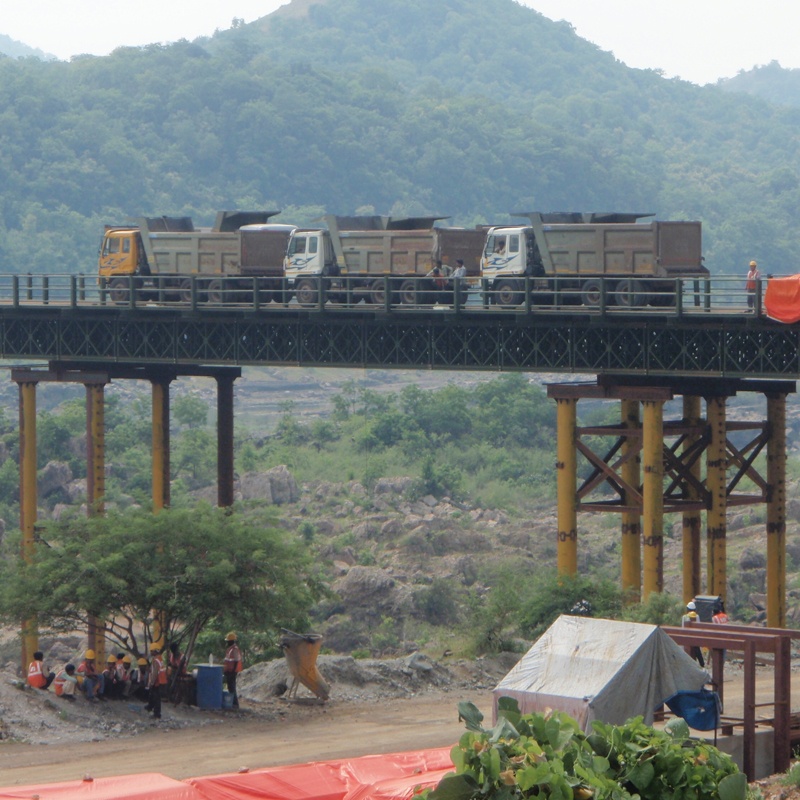

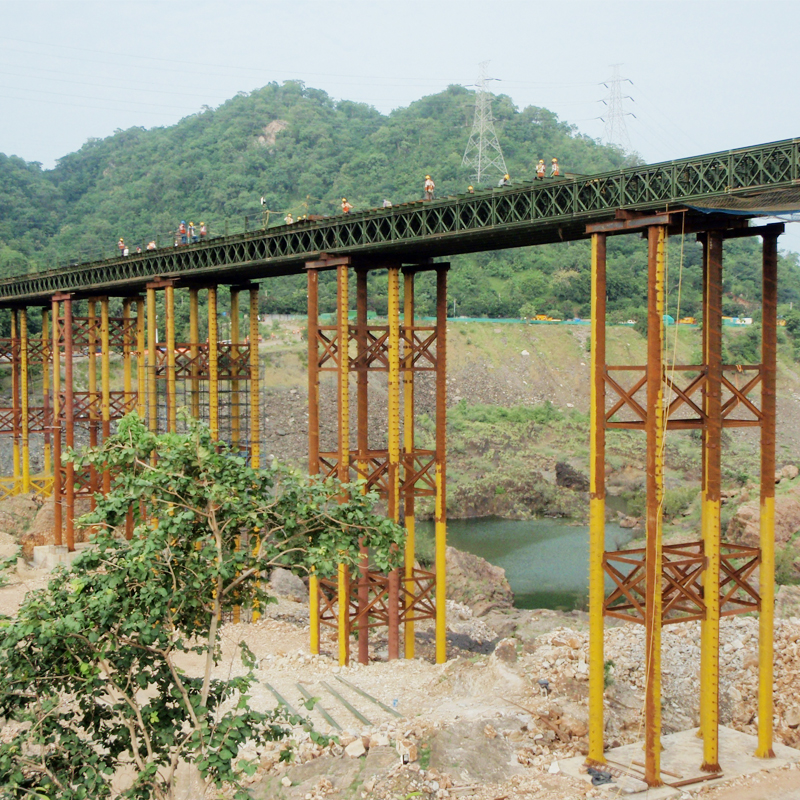

About Bailey bridge
Bailey bridge is used when there is a need to cross an obstaclefor a certain time period. During or after natural disastersreplacement or renovation of consistent bridges or in unusualareas like the movie industry. Thereby the function also differs fordifferent users of the bridge which could be pedestrians,common vehicles(cars, busses, trucks), heavy militarystyle equipment (tank), or the railway.
Standard: ASTM, BS, GB Grade: Q345B-Q460C
Place of Origin: Jiangsu, China Brand Name: BAILEY
Model Number: JSBLGQ-HD200-071 Type: Heavy
Packing: 40' standard HQ containers Tolerance: ±3%
MOQ: 1 PC
Product Name: Hot sale 200 style treastle bailey bridge Hot-Sell
Port of Loading: Any port of China, main port is Shanghai port
SS
Single Row Single Layer
Length: 21.336m
Width: 4.2m
Whether reinforced: no
| ZB200 truss press limited table | |||||||||
| structure form | |||||||||
| No | internal force | not reinforced model | reinforced model | ||||||
| SS | DS | TS | QS | SSR | DSR | TSR | QSR | ||
| 200 | standard truss moment(kN.m） | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 |
| 200 | standard truss shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 |
| 201 | high bending truss moment(kN.m） | 1593.2 | 3122.8 | 4585.5 | 6054.3 | 3335.8 | 6538.2 | 9607.1 | 12676.1 |
| 202 | high bending truss shear(kN) | 348 | 696 | 1044 | 1392 | 348 | 696 | 1044 | 1392 |
| 203 | Shear force of super high shear truss(kN) | 509.8 | 999.2 | 1468.2 | 1937.2 | 509.8 | 999.2 | 1468.2 | 1937.2 |
| ZB200 Table of geometric characteristics of truss bridge（Half bridge） | ||||
| structure | geometric characteristics | |||
| geometric characteristics | chord area(cm2) | Section properties（cm3） | Moment of inertia(cm4) | |
SS single-row, single-layer | SS single-row,single-layer | 25.48 | 5437 | 580174 |
SSR single-row,single-layer, reinforce | 50.96 | 10875 | 1160348 | |
DS double-row, single-layer | DS double-row,single-layer | 50.96 | 10875 | 1160348 |
| DSR1 double-row,single-layer, reinforced | 76.44 | 16312 | 1740522 | |
| DSR2 double-row,single-layer, reinforced only on the top | 101.92 | 21750 | 2320696 | |
TS triple-row, single-layer | TS triple-row,single-layer | 76.44 | 16312 | 1740522 |
| TSR2 triple-row,single-layer, reinforced only on the top | 127.4 | 27185 | 2900870 | |
| TSR3 triple-row,single-layer, reinforced only at the bottom | 152.88 | 32625 | 3481044 | |
| QS quadruple-row, single-layer | QS quadruple-row,single-layer | 101.92 | 21750 | 2320696 |
| QSR3 quadruple-row,single-layer, reinforced only on the top | 178.36 | 38059 | 4061218 | |
| QSR4 quadruple-row,single-layer, reinforced only at the bottom | 203.84 | 43500 | 4641392 | |
More than 30+
cooperative countries
⑴ Raw Material
⑵ Sawing
⑶ Cutting
⑷ Shearing
⑸ Bending
⑹ Punching
⑺ Drilling
⑻ Welding
⑼ Surface Treatment
⑽ Semi-finished products
⑾ Painting
⑿ Painting
3. We can arrange for an excellent engineer to keep in close touch with you at all times to your exact requirements.
4. Our engineer can explain in detail how to use the products while providing you with the necessary service.
5. Our engineer will conduct a thorough inspection of the bridge products and any problem which arises in theprocess would be solved.
6. The feedback on your service information will get to our company's service center.
7. Jiangsu Bailey Steel Bridge will follow up your business on the online service platform to ensure your satisfaction.
We have an experinced management team
and strong sample development skill
A: We are a specialized steel bailey bridge manufacturer with leading manufacturing process for steel bailey bridges in China, who has engaged in this line for over 20 years with an international Quality System Certification of ISO9001:2015 and as cooperation partner with the research institutions of the People's Liberation Army. In addition to this, have good market reputation overseas, like Nigera, Angola, Cango, Cambodia, Nepal, Venezuela, Vietnam, Bangladesh, Papua new guinea, Columbia......
A: We are a factory with Six production lines and various machines to fabricate steel bridges parts and other steel structures. Also, we have gotten the exporting license to devote ourselves into global markets.
A: We pay great attention on quality control from the beginning to the end,keeping our goods to meet the standards of CMA,CNAS,ISO9001,Grade I road,Grade A urban road,Amercia loading standard HS25 and British loading standard HA.
