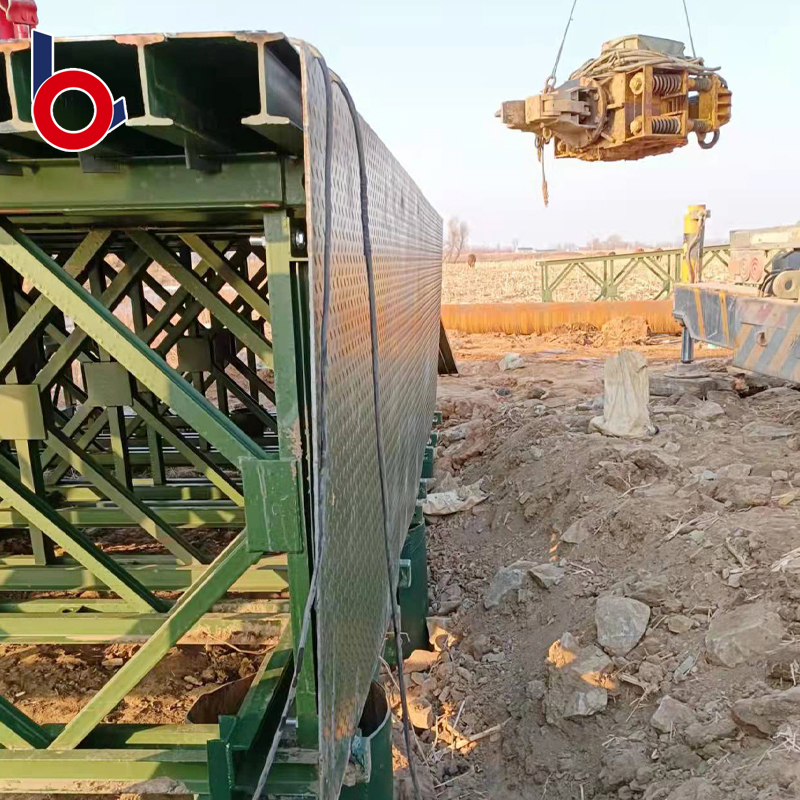

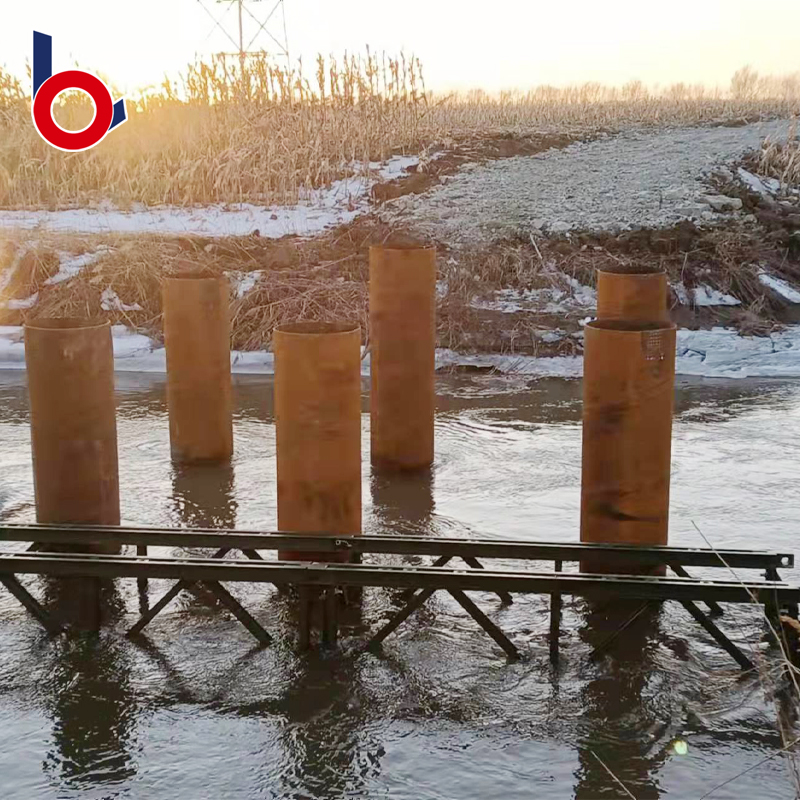

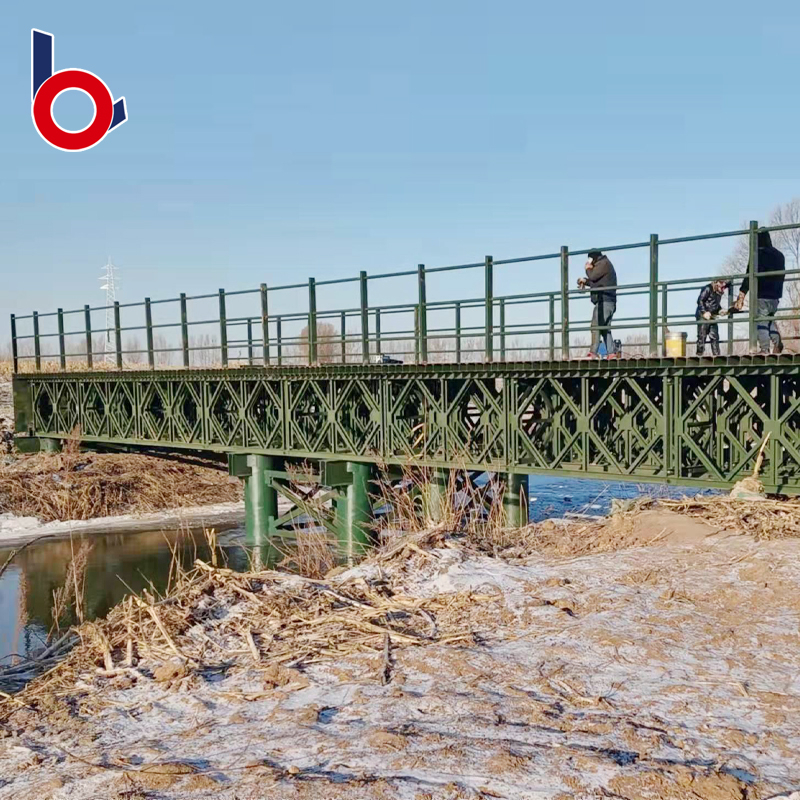

Bailey Bridge (CB-200, 39.624m Long, 18-rows, Deck-type, Single-lane, Clear Width: 6m) at Baihetan Hydropower Station, Qiaojia County, Sichuan Province

Share to:

Bailey Bridge (CB-200, 39.624m Long, 18-rows, Deck-type, Single-lane, Clear Width: 6m) at Baihetan Hydropower Station, Qiaojia County, Sichuan Province

Name: Bailey Bridge (CB-200, 39.624m Long, 18-rows, Deck-type, Single-lane, Clear Width: 6m) at Baihetan Hydropower Station, Qiaojia County, Sichuan Province
Brand: BAILEY
Rating: 5.0 (64 reviews)

Standard: ASTM，GB
Material Grade: Q355B-Q460C
Place of Origin: Jiangsu,China
Product Name: Bailey Steel Bridge
Model Number: JSBLGQ-ZB200(321)
Tolerance: 土1%
Production Capacity: 2500 Tons per month
Packing Detail: Cargo in bundle
Payment Mode: TT (Telegraphic Transfer)
Port of Loading: Any port in China,usually
Shanghai Port

Availability:

Quantity:



Inquire Add to Basket

Model:
Compact 200
Brand:
BAILEY

Product Description

Overview

Standard: ASTM, BS, GB Grade: Q345B-Q460C

Place of Origin: Jiangsu, China Brand Name: BAILEY

Model Number: JSBLGQ-HD200-071 Type: Heavy

Application: Steel Structure Bridge Tolerance: ±3%

supply Ability: 10000.0 Ton/Tons per Year

Packaging Details: packing in containers or bulk

Port of Loading: Any port of China, main port is Shanghai port

ZB200 truss press limited table
		structure form
No	internal force	not reinforced model				reinforced model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	standard truss moment(kN.m）	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	standard truss shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	high bending truss moment(kN.m）	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	high bending truss shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear force of super high shear truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

ZB200 Table of geometric characteristics of truss bridge（Half bridge）
structure	geometric characteristics
structure	geometric characteristics	chord area(cm2)	Section properties（cm3）	Moment of inertia(cm4)
SS single-row, single-layer	SS single-row,single-layer	25.48	5437	580174
SS single-row, single-layer	SSR single-row,single-layer, reinforce	50.96	10875	1160348
DS double-row, single-layer	DS double-row,single-layer	50.96	10875	1160348
	DSR1 double-row,single-layer, reinforced	76.44	16312	1740522
	DSR2 double-row,single-layer, reinforced only on the top	101.92	21750	2320696
TS triple-row, single-layer	TS triple-row,single-layer	76.44	16312	1740522
	TSR2 triple-row,single-layer, reinforced only on the top	127.4	27185	2900870
	TSR3 triple-row,single-layer, reinforced only at the bottom	152.88	32625	3481044
QS quadruple-row, single-layer	QS quadruple-row,single-layer	101.92	21750	2320696
	QSR3 quadruple-row,single-layer, reinforced only on the top	178.36	38059	4061218
	QSR4 quadruple-row,single-layer, reinforced only at the bottom	203.84	43500	4641392

Product Description

Company's products are exported to many countries, such as Singapore,India,Malaysia,Nigeria.Angola,Congo, Cambodia, Nepal, Bangladesh, Vietnam, Venezuela, Papua Guinea and other countries.

Workshop show

Qualification Certificate

FAQ

Q: What kind of company are you?

A: We are a specialized steel bailey bridge manufacturer with leading manufacturing process for steel bailey bridges in China, who has engaged in this line for over 20 years with an international Quality System Certification of ISO9001:2015 and as cooperation partner with the research institutions of the People's Liberation Army. In addition to this, have good market reputation overseas, like Nigera, Angola, Cango, Cambodia, Nepal, Venezuela, Vietnam, Bangladesh, Papua new guinea, Columbia......

Q: Are you a factory or a trade company ?

A: We are a factory with Six production lines and various machines to fabricate steel bridges parts and other steel structures. Also, we have gotten the exporting license to devote ourselves into global markets.

Q: How about quality control of your company?

A: We pay great attention on quality control from the beginning to the end,keeping our goods to meet the standards of CMA,CNAS,ISO9001,Grade I road,Grade A urban road,Amercia loading standard HS25 and British loading standard HA.
