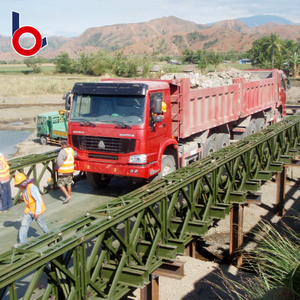

Compact 200
BAILEY
Standard: ASTM, BS, GB Grade: Q345B-Q460C
Place of Origin: Jiangsu, China Brand Name: BAILEY
Model Number: JSBLGQ-HD200-071 Type: Heavy
Application: Steel Structure Bridge Tolerance: ±3%
supply Ability: 10000.0 Ton/Tons per Year
Packaging Details: packing in containers or bulk
Port of Loading: Any port of China, main port is Shanghai port
| ZB200 truss press limited table | |||||||||
| structure form | |||||||||
| No | internal force | not reinforced model | reinforced model | ||||||
| SS | DS | TS | QS | SSR | DSR | TSR | QSR | ||
| 200 | standard truss moment(kN.m） | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 |
| 200 | standard truss shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 |
| 201 | high bending truss moment(kN.m） | 1593.2 | 3122.8 | 4585.5 | 6054.3 | 3335.8 | 6538.2 | 9607.1 | 12676.1 |
| 202 | high bending truss shear(kN) | 348 | 696 | 1044 | 1392 | 348 | 696 | 1044 | 1392 |
| 203 | Shear force of super high shear truss(kN) | 509.8 | 999.2 | 1468.2 | 1937.2 | 509.8 | 999.2 | 1468.2 | 1937.2 |
| ZB200 Table of geometric characteristics of truss bridge（Half bridge） | ||||
| structure | geometric characteristics | |||
| geometric characteristics | chord area(cm2) | Section properties（cm3） | Moment of inertia(cm4) | |
SS single-row, single-layer | SS single-row,single-layer | 25.48 | 5437 | 580174 |
SSR single-row,single-layer, reinforce | 50.96 | 10875 | 1160348 | |
DS double-row, single-layer | DS double-row,single-layer | 50.96 | 10875 | 1160348 |
| DSR1 double-row,single-layer, reinforced | 76.44 | 16312 | 1740522 | |
| DSR2 double-row,single-layer, reinforced only on the top | 101.92 | 21750 | 2320696 | |
TS triple-row, single-layer | TS triple-row,single-layer | 76.44 | 16312 | 1740522 |
| TSR2 triple-row,single-layer, reinforced only on the top | 127.4 | 27185 | 2900870 | |
| TSR3 triple-row,single-layer, reinforced only at the bottom | 152.88 | 32625 | 3481044 | |
| QS quadruple-row, single-layer | QS quadruple-row,single-layer | 101.92 | 21750 | 2320696 |
| QSR3 quadruple-row,single-layer, reinforced only on the top | 178.36 | 38059 | 4061218 | |
| QSR4 quadruple-row,single-layer, reinforced only at the bottom | 203.84 | 43500 | 4641392 | |
Company's production was exported tomany countries,such as Nigeria.Angla,Congo,Cambodia,Nepal,Venezuela,Vietnam,Philppines,Bangladesh,Laos,Papua New Guinea and so on.
Kamchay hydropower station in Cambodia
KAMCHAY (Cambodia) hydropower station the provincial governor of Kampot and the military andgovernment officials attending the ribbon-cutting ceremony for the bridge's being open to traffic.
3. We can arrange for an excellent engineer to keep in close touch with you at all times to your exact requirements.
4. Our engineer can explain in detail how to use the products while providing you with the necessary service.
5. Our engineer will conduct a thorough inspection of the bridge products and any problem which arises in theprocess would be solved.
6. The feedback on your service information will get to our company's service center.
7. Jiangsu Bailey Steel Bridge will follow up your business on the online service platform to ensure your satisfaction.
We have an experinced management team and strong sample development skill
A: We are a specialized steel bailey bridge manufacturer with leading manufacturing process for steel bailey bridges in China, who has engaged in this line for over 20 years with an international Quality System Certification of ISO9001:2015 and as cooperation partner with the research institutions of the People's Liberation Army. In addition to this, have good market reputation overseas, like Nigera, Angola, Cango, Cambodia, Nepal, Venezuela, Vietnam, Bangladesh, Papua new guinea, Columbia......
A: We are a factory with Six production lines and various machines to fabricate steel bridges parts and other steel structures. Also, we have gotten the exporting license to devote ourselves into global markets.
A: We pay great attention on quality control from the beginning to the end,keeping our goods to meet the standards of CMA,CNAS,ISO9001,Grade I road,Grade A urban road,Amercia loading standard HS25 and British loading standard HA.
