At beginning of Second World War,an engineering corps,who called Donald Coleman Bailey,invented a kindof bridge which used for setting up fast and convenient.After that the bridge was named Bailey bridge.Now Bailey bridge is widely used in highway,railway and bridge.It's divided into types:ZB321(100-type)Bailey bridge and HD200 Bailey bridge.

                                                      Overview

                                          --------------------------------------▶▶▶--------------------------------------

Product Details

Standard:                     ASTM, BS, GB                                                                                                        Grade:                   Q345B-Q460C

Place of Origin:           Jiangsu, China                                                                                                       Brand Name:        BAILEY

MOQ:                           1 PC                                                                                                                       Delivery Time:     15-21 days

Application:                Steel Structure Bridge                                                                                            Packing:                40' standard HQ containers

supply Ability:            10000.0 Ton/Tons per Year

Payment:                     L/C, T/T, ESCROW

Port of Loading:        Any port of China, main port is Shanghai port

ZB321(100) truss press limited table
No.	internal force	structure form
		not reinforced model				reinforced model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	standard truss moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375.0	4809.4	6750.0
321(100)	standard truss shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5

321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type        No.	Geometric characteristics	structure form
		not reinforced model				reinforced model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

                                           Product appliction

                                                    --------------------------------------▶▶▶--------------------------------------

 Double-lane

 Single-lane

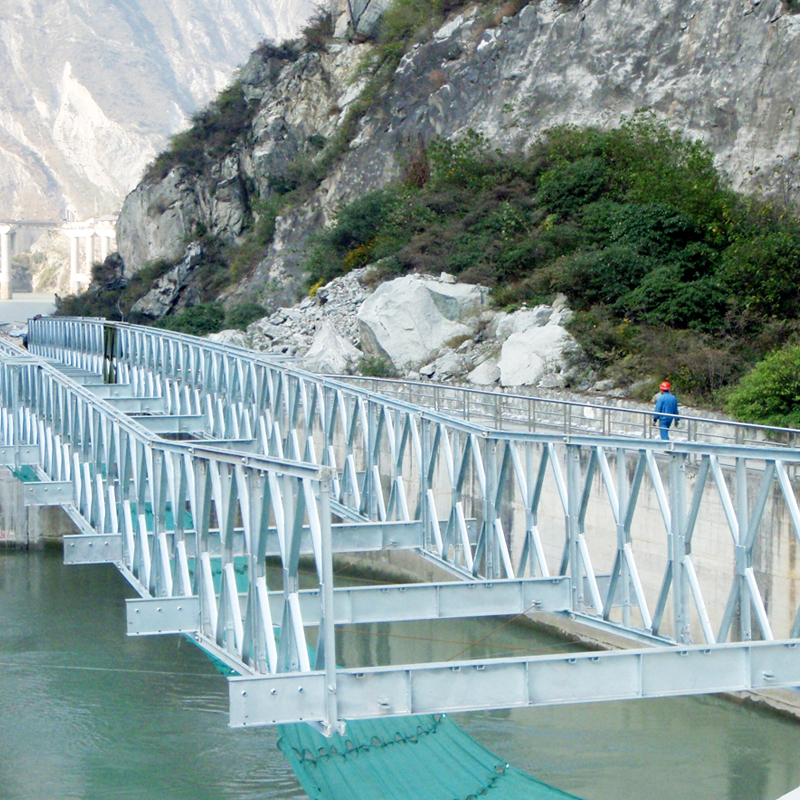

 Foot bridge



Workshop show

--------------------------------------▶▶▶--------------------------------------

                                       Product  Process

                                 --------------------------------------▶▶▶--------------------------------------

                                                        International Vision

                                  --------------------------------------▶▶▶--------------------------------------

2006Year	The company was solemnlyestablished and participatedin the construction ofSichuan Niangyong and Banduo HydropowerProjects in the same year.
2007Year	Shanghai ConstruetionEngineering BeicaiMunicipal (overnment andTaizhou River CrossingBridge.
2008Year	The Ministry of Foreign Tradewas established,CambodiaGianzai Hydropower Station and the domesticShanwei-Xiamen-ShenzhenRailway.
2009Year	Participated in the elevatesupport of the ShanghaiJiangong Shangnan RoadInterchange at the WorldExpo and the GuoyangLaozi Temple LandscapeBridge in Anhui.
2010Year	Participation in the construetion of Cambodia's Elezhai Hydropower Station and Stenwodai HydropowerStation and the steel bridge projeet of Oinghai XunhuaHydropower System.
2011Year	The Wenchuan Earth quakeassisted in the construetion of the export of steelbridges to lrag.

2012Year	Henan Zhengzhou FoxconnTraffie Bridge, Sichuan XixiheHydropower Station LhasaBangduo Hydropower StationSteel Bridge Proieet. ete.
2013Year	Angola and OuterMongolia steel bridge export tasks and Xiningand Tianjin steel bridge projects.
2014Year	Philippine exports and the construction of Shangri-LaYunnan in Hotan, Xinjiang 67-meter pipeline bridge inFengxiang,Shanxi,and137-meter steel bridge inYancheng China Railway.
2015Year	Singapore Super Bere Bridge,Nepal,Guatemala.India Patel 180-meter bronze statue construction 225-meter steel bridge and other projects.
2016Year	Congo Golden Steel Bridge Export,Shanghai Baosteel Xinjiang Kanas ForestryBureau,Zhenjiang Wetland Park Steel Bridge Project,Sanya Hongtang Airport 10.000-pile Bere Tablet Project started.
2017Year	Changzhou Longhutang Metro Station Metro Line 2 Beirejia Steel BridgeProjeet in Zhaosu County,Atushi. Hemu County,Xinjiang,Bozhou, Anhui.

2018Year	The Philippines and NepalShangmaxiangdi Hydropower Station, andthe Hidalaya Third BridgeSteel Bridge Project in Bangladesh.
2019Year	Shandong China Railway16 steel bridges in Beitun,Xinjiang, Shihezi pipegallery bridge, Shantousupport,etc.,exported toIndonesia.
2020Year	Sangyuanzi Bridge across theYellow River in Lanzhou.Gansu.Sichuan Road Bridge200 type deck full-heightshear-resistant Beley Bridge,Xinjiang Horgos steel bridgeproject, Linzhi, Tibet, ete.
2021Year	What will Jiangsu BeileSteel Bridge Co.. Ltd. looklike in the future? Pleaselook forward to it.

	Are you a factory or a trade company ?
☺	We are a factory with Six production lines and various machines to fabricate steel bridges parts and other steel structures. Also, we have gotten the exporting license to devote ourselves into global markets.

	How about quality control of your company?
☺	We pay great attention on quality control from the beginning to the end,keeping our goods to meet the standards of CMA,CNAS,ISO9001,Grade I road,Grade A urban road,Amercia loading standard HS25 and British loading standard HA.

	Where is your loading port?
☺	Any port in China, the main port is Shanghai port .
