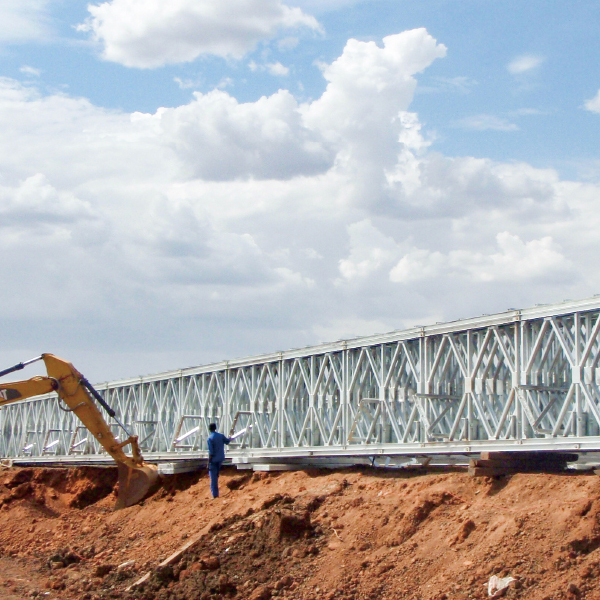

CB100(CB321)Bailey Bridge
BAILEY
Standard: ASTM, BS, GB Grade: Q345B-Q460C
Place of Origin: Jiangsu, China Brand Name: BAILEY
Model Number: JSBLGQ-HD200-071 Type: Heavy
Application: Steel Structure Bridge Tolerance: ±3%
supply Ability: 10000.0 Ton/Tons per Year
Packaging Details: packing in containers or bulk
Port of Loading: Any port of China, main port is Shanghai port
Data Sheet
--------------------------------------▶▶▶-------------------------------------
| ZB321(100) truss press limited table | |||||||||
| No. | internal force | structure form | |||||||
| not reinforced model | reinforced model | ||||||||
| SS | DS | TS | DDR | SSR | DSR | TSR | DDR | ||
| 321(100) | standard truss moment(kN.m) | 788.2 | 1576.4 | 2246.4 | 3265.4 | 1687.5 | 3375.0 | 4809.4 | 6750.0 |
| 321(100) | standard truss shear (kN) | 245.2 | 490.5 | 698.9 | 490.5 | 245.2 | 490.5 | 698.9 | 490.5 |
| 321 (100) Table of geometric characteristics of truss bridge(Half bridge) | |||||||||
| Type No. | Geometric characteristics | structure form | |||||||
| not reinforced model | reinforced model | ||||||||
| SS | DS | TS | DDR | SSR | DSR | TSR | DDR | ||
| 321(100) | Section properties(cm3) | 3578.5 | 7157.1 | 10735.6 | 14817.9 | 7699.1 | 15398.3 | 23097.4 | 30641.7 |
| 321(100) | Moment of inertia(cm4) | 250497.2 | 500994.4 | 751491.6 | 2148588.8 | 577434.4 | 1154868.8 | 1732303.2 | 4596255.2 |
Company's products are exported to many countries, such as Singapore,India,Malaysia,Nigeria.Angola,Congo, Cambodia, Nepal, Bangladesh, Vietnam, Venezuela, Papua Guinea and other countries.
A: We are a specialized steel bailey bridge manufacturer with leading manufacturing process for steel bailey bridges in China, who has engaged in this line for over 20 years with an international Quality System Certification of ISO9001:2015 and as cooperation partner with the research institutions of the People's Liberation Army. In addition to this, have good market reputation overseas, like Nigera, Angola, Cango, Cambodia, Nepal, Venezuela, Vietnam, Bangladesh, Papua new guinea, Columbia......
A: We are a factory with Six production lines and various machines to fabricate steel bridges parts and other steel structures. Also, we have gotten the exporting license to devote ourselves into global markets.
A: We pay great attention on quality control from the beginning to the end,keeping our goods to meet the standards of CMA,CNAS,ISO9001,Grade I road,Grade A urban road,Amercia loading standard HS25 and British loading standard HA.
